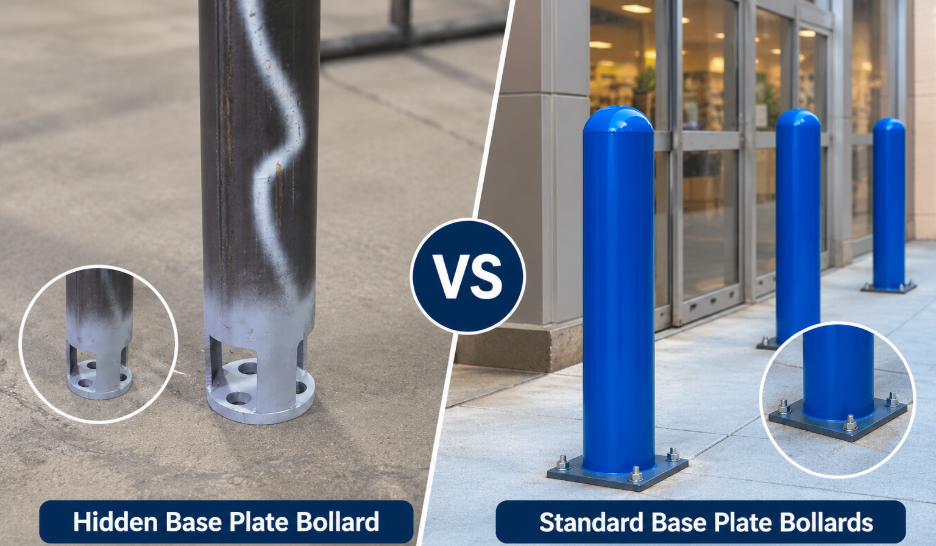

Hidden Base Plate Bollards vs Standard Base Plate Bollards: Which Should You Install?

Key Takeaways

• Both types bolt to existing concrete or asphalt without excavation or core drilling.
• Standard base plate bollards are visible at floor level and suit outdoor and heavy-duty applications.
• Hidden base plate bollards conceal the mounting hardware, reducing trip hazards and improving appearance.
• Hidden base plate bollards are the better choice for tight indoor spaces, showrooms, and pedestrian-heavy environments.
• The right choice depends on where the bollard sits and how important floor-level appearance and safety are.

Table of Contents

1. What Are Standard Base Plate Bollards?
2. What Are Hidden Base Plate Bollards?
3. Side-by-Side Comparison
4. Which Should You Install?
5. Why Choose Bollards & Sleeves?
6. Final Thoughts
7. Frequently Asked Questions

1. What Are Standard Base Plate Bollards?

A standard base plated bollard is a steel pipe post welded to a flat steel plate that bolts directly onto a concrete or asphalt surface. The bollard base plate sits on top of the floor and is visible at ground level. Anchor bolts run through pre-drilled holes in the plate into the substrate below.

This is the most common surface-mount bollard configuration in the US. It is straightforward to install, widely available in multiple pipe sizes and finishes, and does not require core drilling or ground penetration beyond the anchor bolt holes.

Key Advantages

• Bolts to existing concrete or asphalt without any excavation – anchor bolts are all it takes.
• Works well outdoors where the base plate edge is not a walkability concern.
• Wide range of pipe sizes and finishes – galvanized is the go-to for anything exposed to weather.
• Lower upfront cost, which adds up when you are installing across a large perimeter.
• Bollard plates give a wide, stable footprint that holds up well in high-impact zones like loading docks.

2. What Are Hidden Base Plate Bollards?

A hidden base plate bollard uses a uniquely designed mounting system that conceals the base plate at or below floor level. From above, the bollard appears to rise directly from the floor with no visible plate, no protruding edges, and no lip at ground level. The anchor hardware is still there – it is simply not visible or accessible from the walking surface.

This design nearly eliminates the trip hazard created by a standard visible base plate and significantly improves the appearance of the installation. It is particularly valuable in tight spaces where floor area matters and in customer-facing environments where the bollard needs to blend into the surroundings rather than draw attention to itself.

Key Advantages

• No raised edge at floor level – the trip hazard that comes standard with most base plate bollards is essentially gone.
• The bollard just looks like it belongs there – no plate, no hardware visible, no industrial feel.
• No core drilling needed, so installation is faster and less disruptive than it sounds.
• Useful wherever floor space is tight and a standard plate footprint would create a navigation problem.
• Performs the same protective function as a standard base plate bollard – the difference is purely at floor level.

3. Side-by-Side Comparison

4. Which Should You Install?

When Standard Base Plate Is the Right Call

• The bollard is in an outdoor environment: parking lots, loading docks, building perimeters.
• The site is industrial or heavy-duty where appearance is not a priority.
• Budget is the primary driver and the slight trip hazard is acceptable in context.
• Bollard plates with a wide footprint are needed for maximum anchoring in high-impact zones.

When Hidden Base Plate Is the Right Call

• Hidden base plate bollards are the correct choice for any indoor space with regular foot traffic.
• The facility has tight floor space and a visible base plate footprint creates a navigation problem.
• Customer-facing environments: showrooms, retail floors, medical facilities, office lobbies.
• The site has already experienced trip incidents or near-misses around standard base plate bollards.
• Appearance is part of the brief – the bollard needs to look intentional, not industrial.

5. Why Choose Bollards & Sleeves?

Bollards & Sleeves offers a uniquely designed hidden base plate bollard that requires no core drilling and conceals the base plate to nearly eliminate trip hazards – making it one of the most practical indoor bollard solutions available for facilities tight on floor space.

• Available in 4" and 6" Schedule 40 pipe.
• Standard heights: 27", 36", 42", 48", and 52".
• Finishes: bare pipe, primed, powder coated, and galvanized.
• Bollard cover included at no extra charge – no painting required, ever.
• Cut to custom lengths available.
• Non-core drill hidden base plate application for easy installation.
• Cost-effective barrier solution that enhances facility appearance.

6. Final Thoughts

If the bollard is outdoors or in a heavy-duty environment where floor appearance is secondary, a standard base plated bollard gets the job done at lower cost. If the bollard is indoors, in a tight space, or anywhere a customer or employee might trip over a visible plate edge, the hidden base plate bollard is the smarter long-term investment. The protection is the same. The floor around it is a different story.

Need hidden or standard base plate bollards for your facility?

Call 1-800-914-4771 or request a free quote. In stock and ships in 3-5 business days.

Start My Bollard Order

Tell us your pipe size, height, and finish. Your quote is ready within one business day.

7. Frequently Asked Questions

Q1: What is a hidden base plate bollard?

A: It is a surface-mount bollard where the mounting hardware sits flush with or below the floor – so from above, the post just rises cleanly from the surface. Same protection as a standard bollard, just without the visible plate and raised edge at ground level.

Q2: Do hidden base plate bollards require core drilling?

A: No, and that is one of the main reasons facilities choose them. Hidden base plate bollards anchor with standard bolts into the existing surface – no core drilling, no excavation, no major disruption to the floor.

Q3: What is the difference between a hidden and standard bollard base plate?

A: A standard bollard base plate sits on top of the floor – you can see it and catch your foot on it. A hidden base plate sits at floor level with nothing protruding. That is the whole difference, but in a busy indoor space, it is a significant one.

Q4: What pipe sizes are base plate bollards available in?

A: Base plated bollards are commonly available in 4" and 6" Schedule 40 pipe in heights of 27", 36", 42", 48", and 52". Custom lengths are available. Finishes include bare pipe, primed, powder coated, and galvanized.

Q5: Are bollard covers included with hidden base plate bollards?

A: At Bollards & Sleeves, yes – a bollard cover comes included at no extra charge. It means no painting, no rust, and the post stays looking sharp without any upkeep.
