Why Engineers Prefer Steel Highway Guardrails Over Other Safety Barriers
Key Takeaways
- The most common vehicle barrier specified in the U.S. is a steel highway guardrail, used on roadways and commercial premises.
- Class A 12 Gauge galvanized steel is better than plastic, cable, water filled barriers in impact resistance and longevity.
- W-Beam guardrail deflects cars, not stops them — minimizes likelihood of secondary collision.
- Faster, cheaper installation than concrete barrier on most commercial locations.
- The same approach used on US roadways works for parking lots, trucking yards and building perimeters.
Quick Answer
Engineers like the steel highway guardrail, especially the Class A 12 Gauge W-Beam galvanized steel, since it redirects the impact of the vehicle rather than stopping it, greatly decreasing damage to vehicles, infrastructure and humans. It’s economical, low maintenance, and the same specification used on U.S. federal and state roadways is available for commercial and industrial installations.
What happens next depends almost entirely on the barrier the vehicle encounters when it leaves its lane, whether that’s on a highway in Tennessee or in a parking lot in Michigan.
For decades, engineers and facilities managers across the US have specified steel highway railing. Not because it’s the only option, but because for most purposes it surpasses the other options on every criteria that really matters: affordability, durability, ease of installation, and long-term performance.
This guide explains why - and when another kind of barrier might be the better decision.
What Makes Steel Highway Guardrail Different?
Most safety barriers either stop a vehicle or they delineate a boundary. Highway guardrail accomplishes something else more effective: it redirects the car.

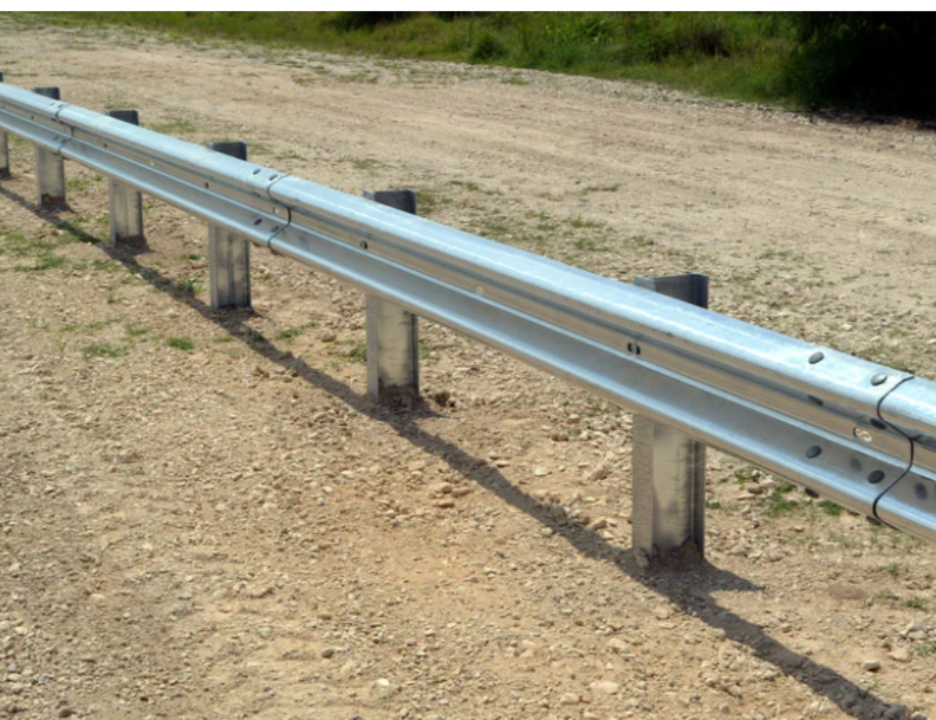

The W-Beam profile, the corrugated shape of the rail, flexes on impact, absorbs kinetic energy, and guides the vehicle back toward the travel direction. That lessens the force sent to the occupants of the vehicle, minimizes damage to the barrier itself, and diminishes the likelihood of a secondary collision with other vehicles or structures.
That physics-based approach is what has made the steel highway guardrail the standard for US federal and state road systems, and the same specification immediately applies to commercial and industrial locations.
Key Performance Characteristics
- W-Beam profile deflects, doesn't stop - lower peak impact force
- Class A 12 Gauge galvanized steel – certified for repeated outdoor exposure without structural degradation
- Hot-dip galvanized finish, no painting, no recoating, decades of outdoor service
- Modular System W-Beams, posts and terminal ends connect in conventional configurations for any run length
How Does Steel Guardrail Compare to Other Safety Barriers?
Not every site needs the same protection. How does highway guardrail compare to the most frequent alternatives?
| Safety Barrier | Impact Resistance | Best For |
|---|---|---|
| Steel Highway Guardrail | High: redirects vehicle | Roads, parking lots, perimeters |
| Concrete Barrier (Jersey) | Very High: stops vehicle | Highways, construction zones |
| Cable Barrier | Medium: flexible | Median dividers, rural highways |
| Water-Filled Barrier | Medium: temporary | Work zones, events |
| Plastic Delineators | Low: guidance only | Lane marking, light traffic |
Why Do Engineers Keep Specifying It?
There are several reasons why engineers use guardrail for highways and commercial locations that other barriers never quite measure up to:
1. Proven Impact Performance
Class A 12 Gauge steel highway guardrail contains decades of real-world performance data from US federal and state highway systems. It’s not lab testing – it’s millions of car impacts in every climate and road condition in the country. Engineers trust specs with that kind of established field performance.
2. Lower Total Cost of Ownership
Concrete barriers are far more expensive to install/move. Cable barrier needs regular tensioning and inspection. Water barriers are a rental, not a permanent solution. The highway guardrail is bought once, placed in hours, and has no scheduled maintenance other than occasional visual examination.
3. Fast Installation on Existing Surfaces
W-Beam guardrail posts can be provided with foundation plates for bolt-down application on concrete or asphalt – no ground penetration or concrete pour required. This can greatly reduce installation time and inconvenience for retrofits at existing commercial buildings in states like Texas, Florida and Illinois.
4. Recognized by Authorities Having Jurisdiction
Class A 12 gauge steel highway guardrail is a specification that is approved for federal, state and local government purchase orders. When a project needs documentation for permitting or compliance assessment, the specification is already in place – no custom engineering is necessary.
5. Full System from One Supplier
The W-Beam, posts, terminal ends and hardware are everything necessary for a comprehensive highway guardrail installation. Working with highway guardrail suppliers who have all components means no gaps in procurement, no gauge mismatches and no waiting on a single missing part.
Where Is Steel Highway Guardrail Used Beyond Roads?
The same guardrail for highways specifications that safeguard vehicles on US interstates are utilized every day on commercial and industrial sites:
- Parking lots - car lanes separated from pedestrian walkways and building facades
- Preventing damage to loading dock infrastructure by trucks - Trucking yards and logistical facilities
- Building Perimeters - preventing pedal-error Vehicles hitting storefronts and office fronts
- Service roads and access ways - establishing vehicle routes in industrial and manufacturing locations
- Drive-thru lanes that steer vehicles past tight clearances without concrete construction
When Should You Choose a Different Barrier?
Steel highway guardrail is best suited for most locations. But there are specific situations where the better specification is another barrier type:
- Concrete barrier: If the site requires that a vehicle not be rerouted and that the vehicle must stop completely, or if the threat level requires ASTM F2656 M50 certification
- Cable barrier: for use in median divider applications on rural roadways where cost per foot is the key consideration
- Plastic delineators: where the demand is for lane guiding only, with no vehicle impact protection
- Crash-rated bollards: for sites that require point protection of a discrete access point rather than a continuous run
Need highway guardrail for a commercial or industrial site?
Call 1-800-914-4771 or request a free quote — W-Beams, posts, ends, and hardware in stock and ships in 3–5 business days.Frequently Asked Questions
Q1: What are the leading manufacturers of highway guardrails in the US?
A: Some of the prominent manufacturers of US highway guardrails include Nucor Skyline, Trinity Highway Products, Valmont Industries, and Lindsay Transportation Solutions. All supply W-Beam systems in Class A 12 Gauge galvanized steel to AASHTO and FHWA standards.
Q2: Where can I buy highway guardrails that meet federal safety standards?
A: Steel highway guardrail meeting FHWA and AASHTO standards is available through US-based highway guardrail suppliers who stock full system components.
Q3: Where can I find specifications for roadside barrier installation?
A: The main references are the AASHTO Roadside Design Guide, FHWA’s Roadside Hardware guidelines, and ASTM F3016. State DOTs also provide standard drawings of acceptable highway guardrail systems. For commercial sites, contact your local authority having jurisdiction (AHJ).
Q4: What types of highway guardrails are best for high-traffic areas?
A: Class A 12 Gauge W-Beam steel highway guardrail is the typical specification for high traffic commercial and industrial locations. Instead of stopping vehicles, it redirects them, lowering the chance of additional collisions. At higher threat sites, it may be necessary to use Thrie-Beam guardrail or crash-rated bollard systems.
Q5: What are the different types of highway guardrail systems?
A: The primary types are: W-Beam (most popular – corrugated steel on posts), Thrie-Beam (wider profile, higher confinement), cable barrier (flexible wire rope for medians) and concrete barrier (Jersey or F-shape for greatest containment). W-Beam Guardrail for Highway & Commercial Sites is the most economical and most readily available.
