Standard Guardrail Barrier

Protecting critical assets is crucial on shop floors and in warehouses and facilities. Forklifts buzzing around, workers pushing product carts around. It's very easy for an accident to happen. So, make sure you have the proper protection set up in front of your machinery, employee entrances and other vulnerable areas.

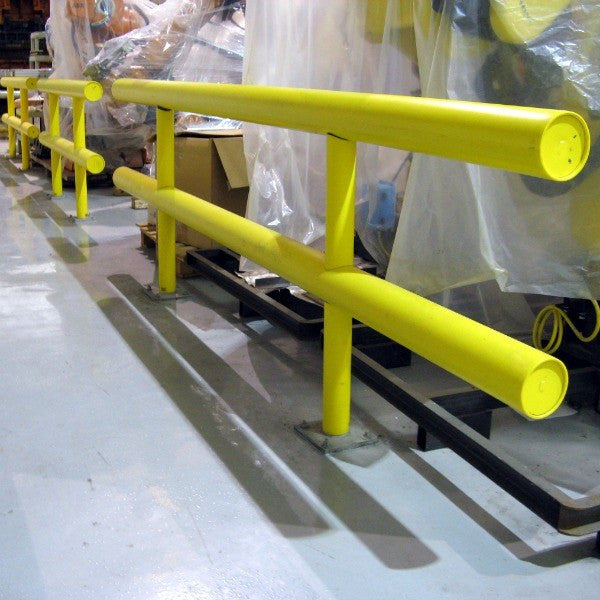

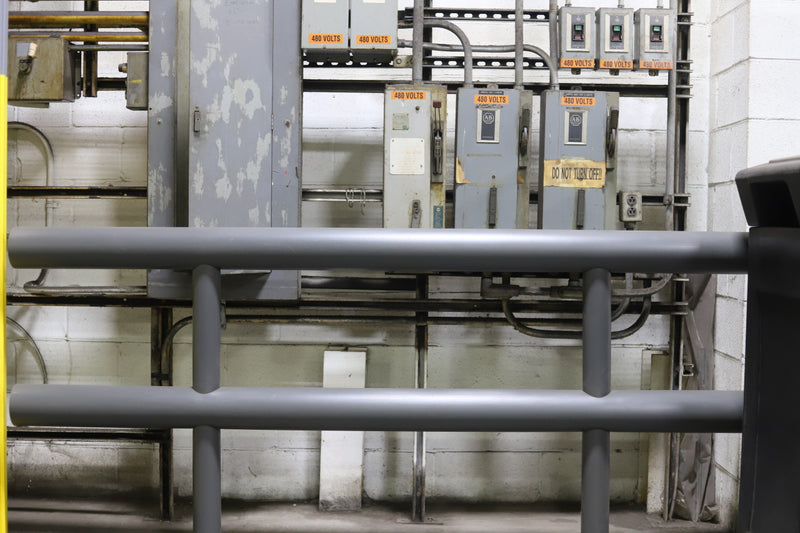

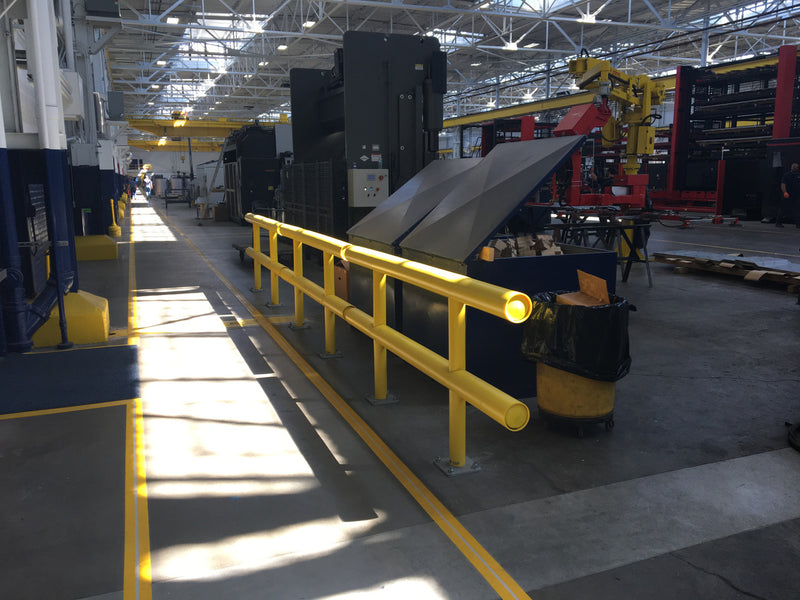

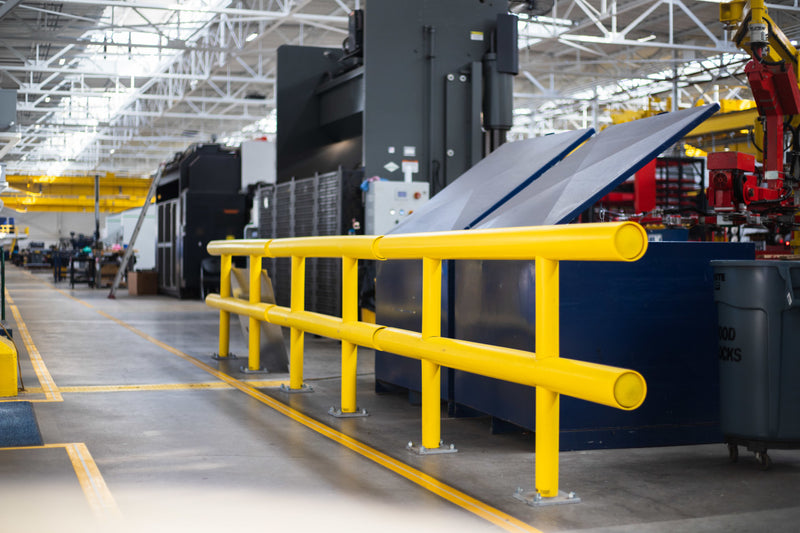

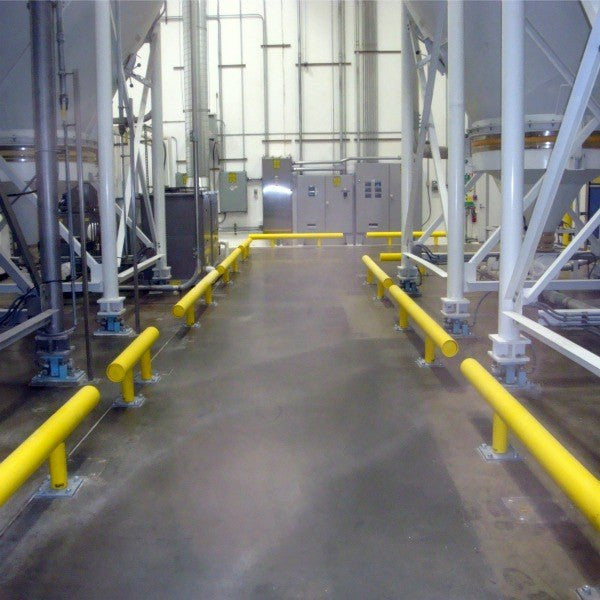

Our Standard Guardrail is designed to withstand everyday forklift collisions and continue to hold strong.

Product Features

• Strong, durable guardrail protection
• Never paint again

• Ships fully assembled and ready to install

• Stops a 12,100 lb. forklift  traveling at 4 mph.
• Withstands multiple hits without damage
• Protects expensive equipment and valuable assets
• Maximizes floor space - place within inches of protected item
• Plate mounted installation

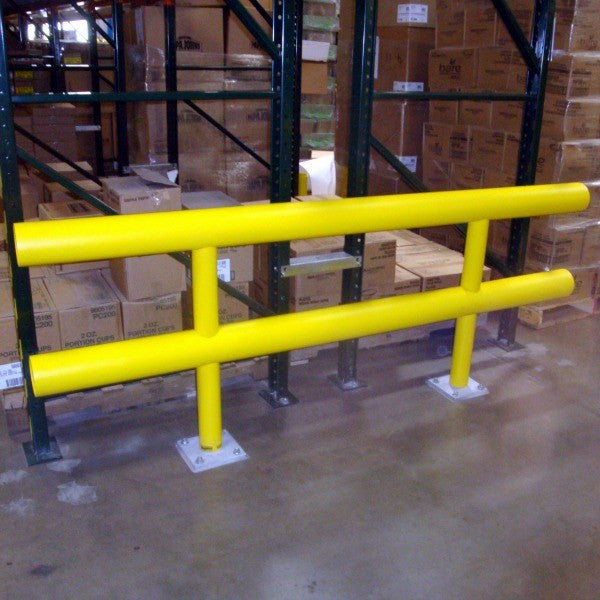

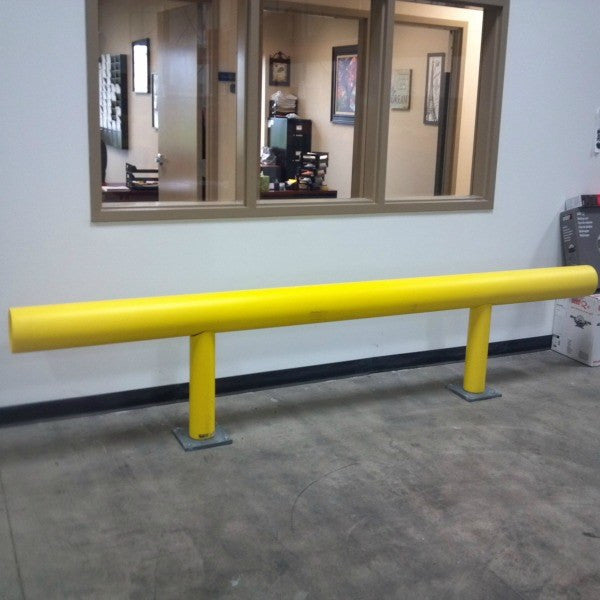

• One and two-line systems


Specs

• Pipe Posts: 2 ½" schedule 80 steel pipe covered in durable plastic
• Pipe Rail: 4" schedule 40 steel pipe covered in durable plastic
• Lengths: 48", 72", 96", 120"
• Heights:
• Standard One-Line System: 14 ¾", 27", 36", 42"

• Standard Two-Line System: 27", 36", 42"
• Installation: Plate mounted with 1/2" x 8" x 8" base plates

Full Standard Guardrail Part Number Chart
STANDARD ONE LINE RAIL – 14 ¾” HIGH			STANDARD TWO LINE RAIL – 27″ HIGH
SGR-1-048-14 ¾ -P	4′-0		SGR-2-048-27-P	4′-0
SGR-1-072-14 ¾ -P	6′-0		SGR-2-072-27-P	6′-0
SGR-1-096-14 ¾ -P	8′-0		SGR-2-096-27-P	8′-0
SGR-1-120-14 ¾ -P	10′-0		SGR-2-120-27-P	10′-0
STANDARD ONE LINE RAIL – 27″ HIGH			STANDARD TWO LINE RAIL – 36″ HIGH
SGR-1-048-27-P	4′-0		SGR-2-048-36-P	4′-0
SGR-1-072-27-P	6′-0		SGR-2-072-36-P	6′-0
SGR-1-096-27-P	8′-0		SGR-2-096-36-P	8′-0
SGR-1-120-27-P	10′-0		SGR-2-120-36-P	10′-0
STANDARD ONE LINE RAIL – 36″ HIGH			STANDARD TWO LINE RAIL – 42″ HIGH
SGR-1-048-36-P	4′-0		SGR-2-048-42-P	4′-0
SGR-1-072-36-P	6′-0		SGR-2-072-42-P	6′-0
SGR-1-096-36-P	8′-0		SGR-2-096-42-P	8′-0
SGR-1-120-36-P	10′-0		SGR-2-120-42-P	10′-0
			Anchors Bolts: ¾” x 6 ¼”	EA
STANDARD ONE LINE RAIL – 42″ HIGH
SGR-1-048-42-P	4′-0
SGR-1-072-42-P	6′-0
SGR-1-096-42-P	8′-0
SGR-1-120-42-P	10′-0
Anchors Bolts: ¾” x 6 ¼”	EA
